Intelligent Money Counter

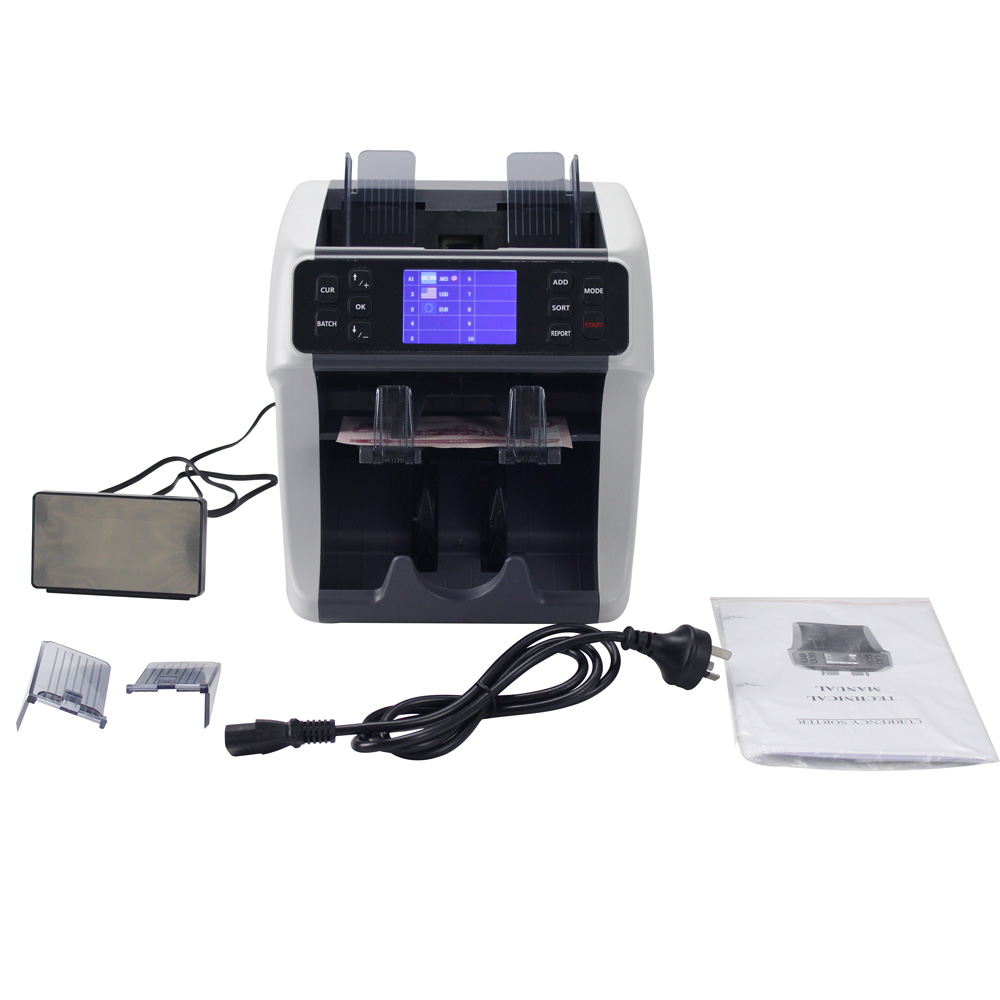

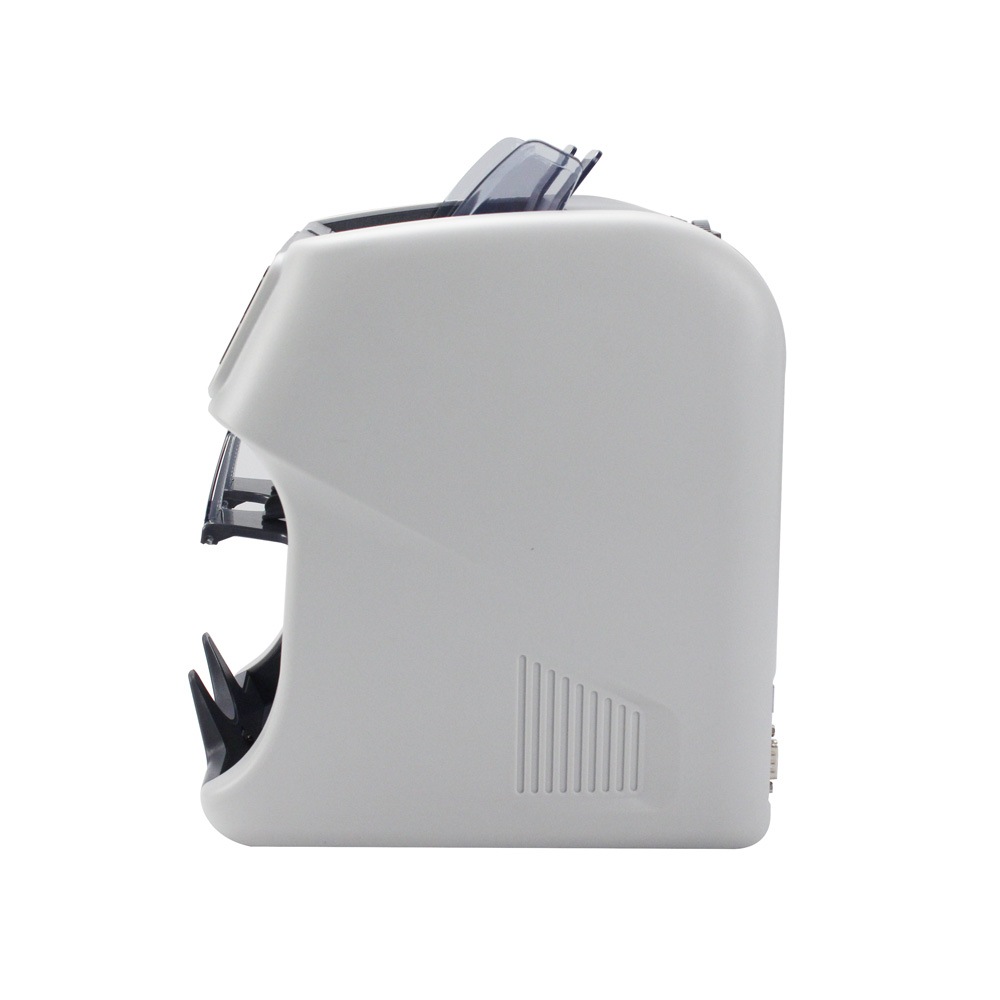

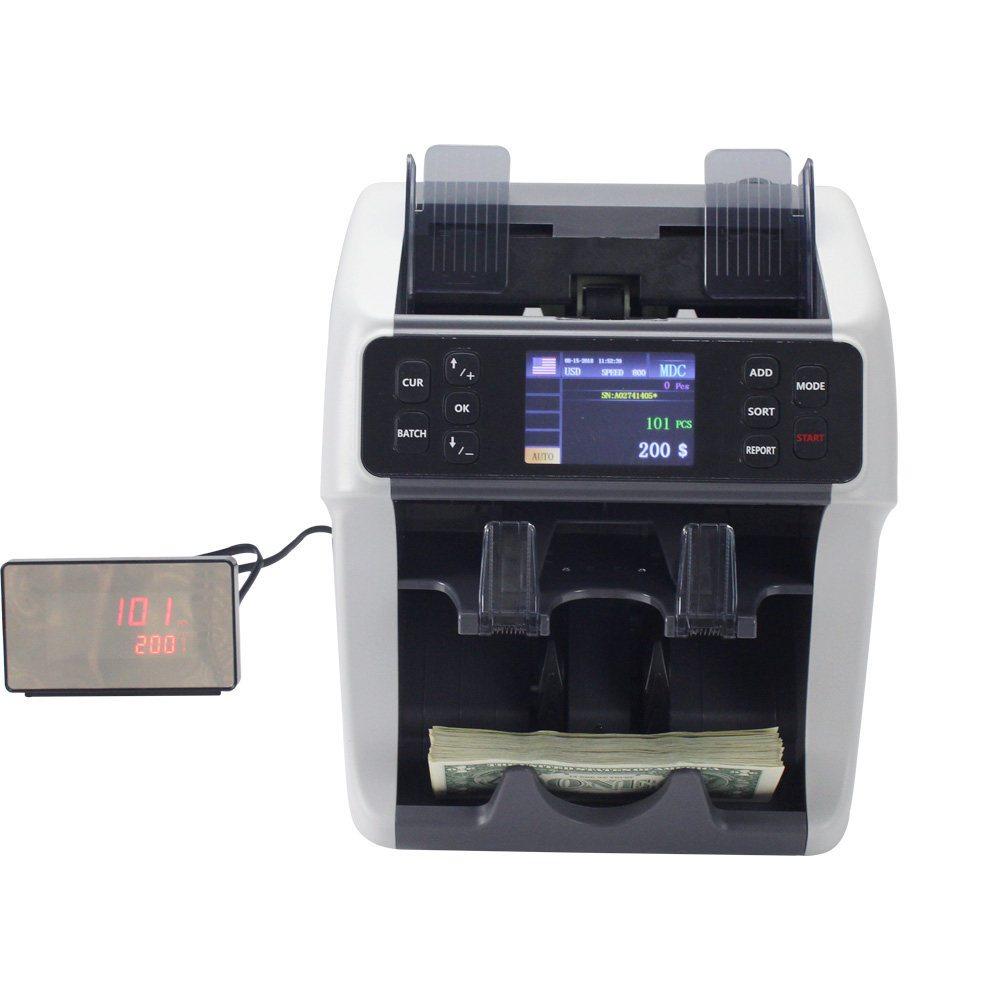

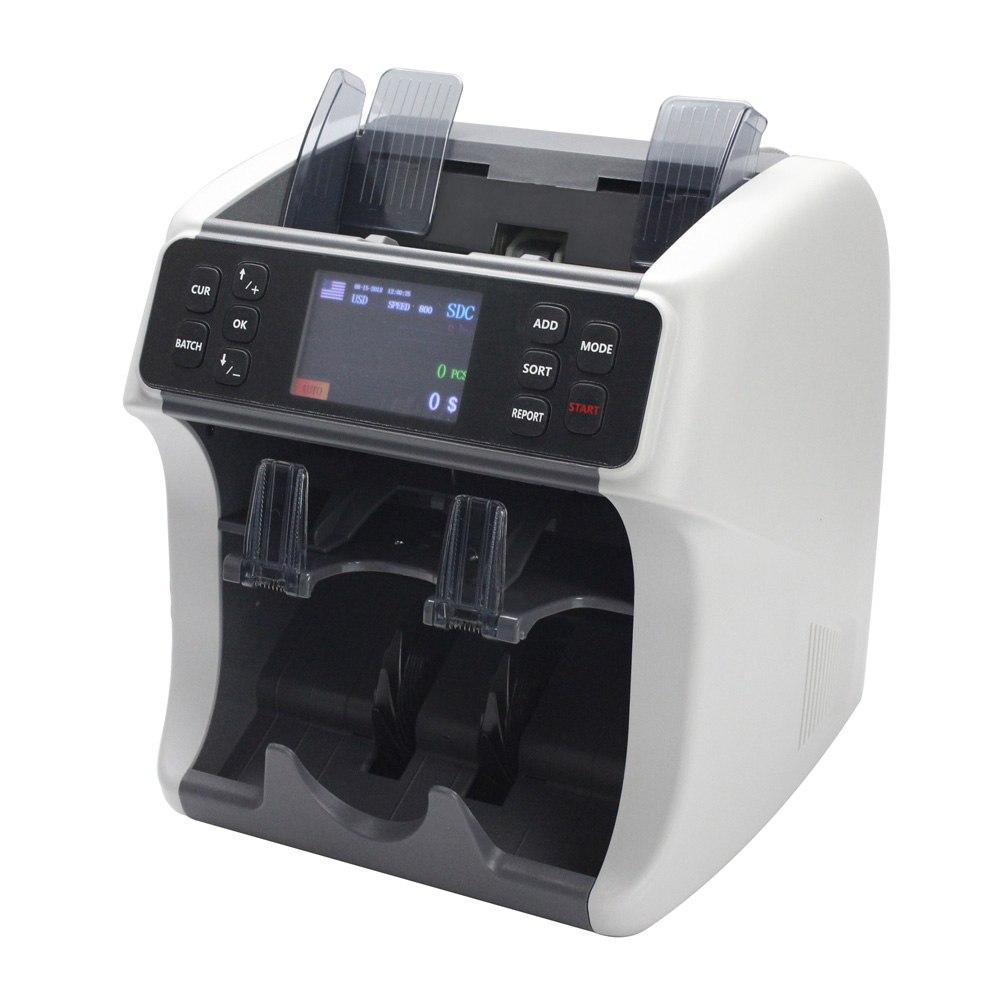

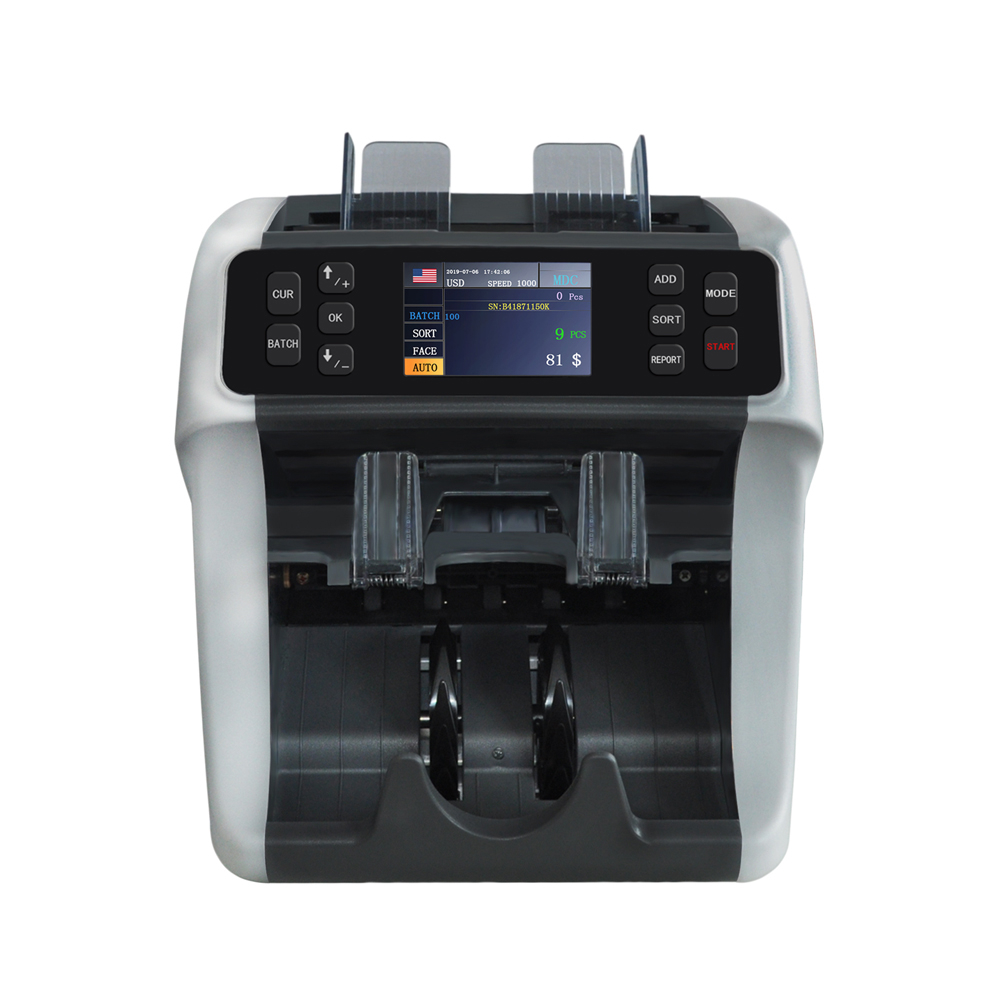

XD-900 Intelligence Money Counter

Features:

1.ECB successfully tested

2.Mix value counting of multi currency

3.Easy updates via SD card

4.Error Detection: Double Detection, Half Note Detection, Chain Note Detection

5.Denomination Detection: Contact Image Sensor

6.Serial numbers reading

7.Printer and PC connection

8.Available currencies select: USD, EUR, GBP, CAD, MXN... Up to 40 currencies

9.Counterfeit Detection: CIS Image, Magnetic, Infrared, Ultraviolet

10.Options: Customer Display / Thermal Printer / PC connection

11.Interface: RS-232, USB,LAN

Description:

Model	XD-900
Display	3.5 Inch TFT Display
Counting Speed	800 / 1000 notes/min(MDC/SDC Mode) 800 / 1000 / 1200 notes/min (CNT Mode)
Size of Countable Note	60×110/90×185mm
Machine Dimensions	300(W) x 330(D) x 370(H)mm
Net Weight	8.5kg/unit
Size of Carton	640×390×460mm(2 units)/330×390×460mm(1unit)
Gross Weight	18.54kg(2 units) /9.42kg(1unit)
Power Supply	100-240V, 50/60Hz
Power Consumption	Iding 0.2A(100~240 VAC) 120W
Hopper Capacity	500 pcs
Stacker Capacity	200pcs
Display Language	English or Customized
Feed system	Roller Friction System
Reject Stacker Capacity	Approx.50 notes(Adjustable from 25~100notes)
Temperature	0℃~35℃(Operating)
Usage Environment	-10℃~60℃(Stock)
Humidity	20%~90%(no condensation)
PC Terminal	Interface(RS-232C)
Interface	Printer Inter Interface(RS-232C)
U Disk	USB2.0 USB3.0 Interface
Option	Customer Display / Thermal Printer / PC connection
